Varied linespace plane grationg monochromator(VLS-PGM)


Designed mainly by Dr. Amamiya (Univ. of Tokyo)

1. Design Concept

In this monochromator, focused beam irradiates the grating. The optics doesn't have an entrance slit, and cover the photon energy ranges, 60-2000 eV with 600 and 1200 l/mm gratings, 30-1200 eV with 600 and 1200 l/mm gratings and 10-200 eV with 600, 1200 and 2400 l/mm gratings.The energy resolution higher than 10,000 is easily achieved in the whole photon energy range. And through put is also high enough.
Here the undulator light from the high- section with 4.5 m length will be used.

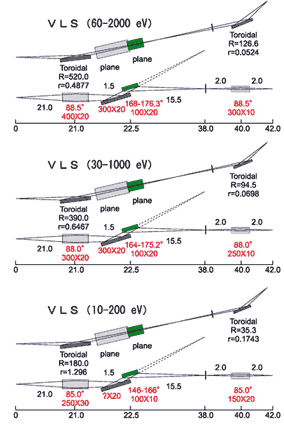

2. Optical layout

VLS

3. performance

Energy resolution

High energy range(60-2000 eV, 30-1200 eV)
E/E > 10,000 in the most of the energy range.

Low energy range(10-200 eV)
E/E > 10,000 is easily achieved even if the deviation angle is fixed.

Photon Flux 1012 photons/s @E/E=100,000
Photon spot size at the sample less than 0.1 mm x 0.1 mm

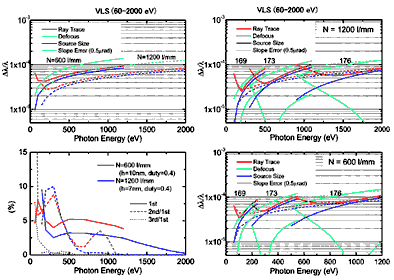

VLS1

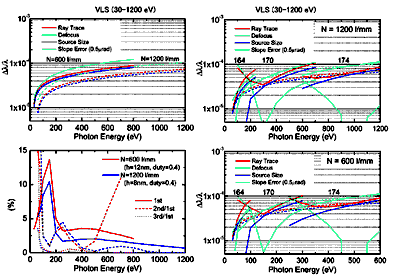

VLS-2

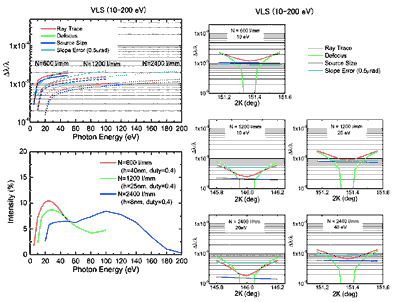

VLS-3
