Characteristics of the Project
The efficiency of Facility
|
Strage Ring
|
Injector (linac, Synchrotron)
|
|
Electron energy | 1.8Gev (@Top up running mode) | Linac energy | about 200MeV |
Beam emittance | 8nm・rad (min. 3nm・rad )(@1.8GeV) | Synchrotron energy | (Max) 2.0GeV |
Ring circumference | about 280m | ||
Beam current | about 500mA | ||
Brilliance | over 1020photons/sec/mm2/mrad2/0.1%b.w. | ||
Flux | over 1016photons/sec/0.1%b.w. | ||
Number of straight sections | 17m×2 6m×12 |
||
Number of beamlines | For undulator 12 For bending magnet 14 ![]() |
||
Number of experimental stations | undulator beam lines about 20 bending magnet beamlines about 30 |
![]() |
![]() |

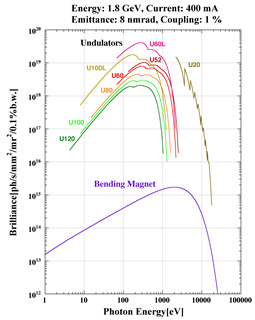

Beam emittance (8nm・rad ) |

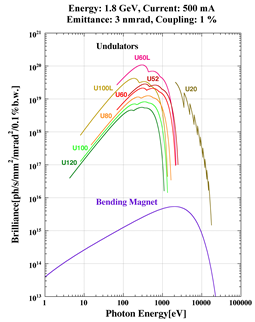

Beam emittance (min. 3nm・rad ) |
