常設展示2009

世界最強のマグネットによる物質極限機能の解明

強磁場を半導体、磁性体、新奇な金属、超伝導物質などに 適用し、極限状態における電子状態を調べている。また、 より強い磁場発生の為のマグネット開発も行っている。 非破壊型長時間パルスマグネットでは、電気伝導、光学、 磁化測定などの精密な物性計測に用いられるだけでな く、高圧、低温環境と組み合わせた実験にも使用される。 これらは、強い磁場を必要とする国内外の多くの物性研 究者に利用されている。世界最大の直流発電機(210 メ ガジュール) によって駆動されるロングパルスマグネッ トとして100 テスラ磁場発生へ向けた研究開発も進め ている。また、電磁濃縮法、および、一巻きコイル法による 破壊的手法にて100 T以上の超強磁場発生とそれを用い た物性研究をおこなっている。

Investigation of extreme material functions using the world’s strongest magnets

Strong pulse magnets are being developed, and the electronic states in semiconductors, magnetic materials, novel metals, and superconducting materials are under study in extreme physical conditions. The measuring techniques by use of the non destructive and long pulse magnets are available for electric transport, optical, and magnetization measurements at low temperatures and/or high pressures. The facilities are offered for use by not only domestic users but also those from overseas. It is planned to establish long pulse magnets energized by the world’s largest 210 MJ-DC flywheel generator to explore the 100 T regime. Magnetic fields above 100 T are achieved by destructive electro-magnetic flux compression and the single-turn coil techniques, and are used for research in solid-state physics.

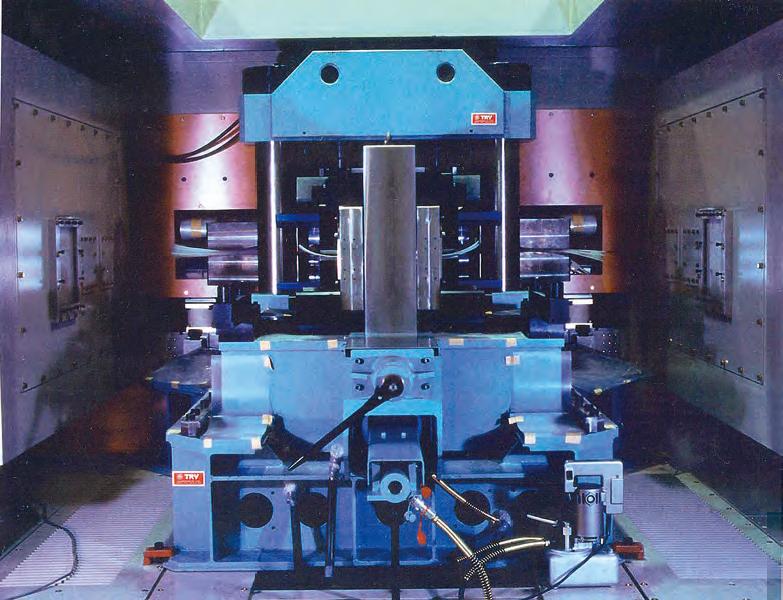

爆破保護室内に設置された「電磁濃縮法」による超強磁場発生装置.
An ultra high-magnetic-field generation system using the electromagnetic flux compression method has been installed at ISSP inside protection housing.
電磁濃縮磁場発生に用いる主コイルと磁場濃縮時間発展.
The primary coil used for electro-magnetic flux compression with the time profile during the magnetic field compression.
平成20年に完成した国際強磁場コラボラトリー棟.
View of the new buildings of the "International High Magnetic Field Colaboratory" completed in 2008.

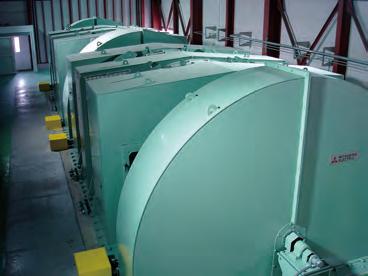

世界最大の直流電源; 回転蓄積エネルギー210MJのフライホイール発電機.
The world’s largest DC electric power generator; a flywheel generator capable 210 MJ stored by a rotation energy.

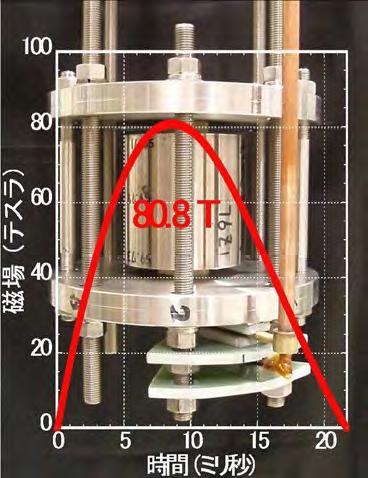

非破壊長時間パルスマグネットと磁場波形.
The non destructive long-pulse magnet with the waveform of a magnetic field.
物性物理学をリードする物質合成とスーパーコンピュータによる仮想物性実験
Materials synthesis and virtual experiments using a supercomputer for solid state physics
