1. Characteristics | ||
1) The facility is one of the most brilliant light source in the world, and the only third generation vacuum-ultra-violet and soft X-ray light source in Japan. 2) The facility is open to domestic and foregin researchers. 3) It is designed and will be constructed by the specialists of accelerator and the researchers using synchrotron radiation light source in Japan. |
||
2. Performance |
||
1) Storage ring | ||
Electron energy Beam emittance Ring circumference Beam current Brilliance Flux Number of straight sections Number of beamlines Number of experimental stations |
1.8 GeV (@ Top up running mode) 8 nm・rad ( min. 3 nm・rad ) (@1.8GeV) about 280 m about 500 mA over 10 20 photons/sec/mm2/mrad2/0.1%b.w. over 10 16 photons/sec/0.1%b.w. 17 m×2、6 m×12 for undulator 12, for bending magnet more than14 undulator beamlines about 20 bending magnet beamlines about 30 |
|
2) Injector (linac, synchrotron) | ||
Linac enegy Synchrotron energy |
about 200 MeV (Max.) 2.0GeV |
|

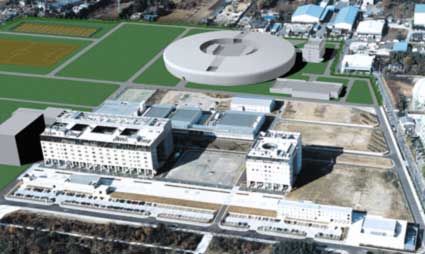

3. Location |
||
University of Tokyo, Kashiwa campus. |
